HTB Write-Up | medium Sherlock | Heartbreaker

Tools & Setup

For this investigation, I used a machine running Fedora 42, meaning that I had access to all the standard Linux tools like grep, strings, etc. Of course, there are Windows equivalents for most of these tools, and it is possible to repeat any of these steps on Windows.

Starting Out

I always start by thoroughly reading the description. It reads:

Delicate situation alert! The customer has just been alerted about concerning reports indicating a potential breach of their database, with information allegedly being circulated on the darknet market. As the Incident Responder, it’s your responsibility to get to the bottom of it. Your task is to conduct an investigation into an email received by one of their employees, comprehending the implications, and uncovering any possible connections to the data breach. Focus on examining the artifacts provided by the customer to identify significant events that have occurred on the victim’s workstation.

Important points from the description:

1. There has been a data breach, with sensitive information being sold on the darknet.
2. A potentially malicious email is involved, possibly kicking off the incident.
3. We will be focusing on the workstation of the employee who received the malicious email.

Download ultimatum.zip and decompress it

As usual, I used 7z to unzip the archive and enter the password hacktheblue.

7z x HeartBreaker.zip

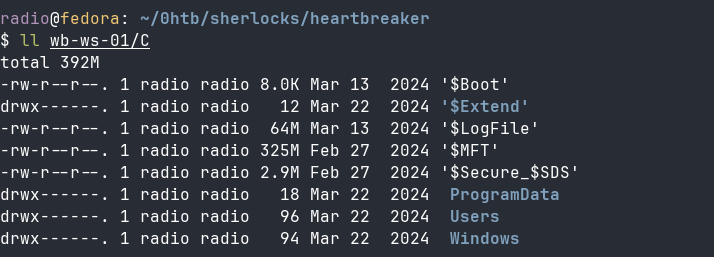

Looking at the C directory, this is some kind of forensic evidence gathered from a Windows system. At this point, I’m not sure if it is the entire filesystem or just certain files selected by the evidence gathering program.

No matter though, it’s time to dive into the tasks.

Task 1: The victim received an email from an unidentified sender. What email address was used for the suspicious email?

It looks like the user on this system, who is presumably the victim employee, is ash.williams. They have offline Outlook messages stored in wb-ws-01/C/Users/ash.williams/AppData/Local/Microsoft/Outlook/ashwilliams012100@gmail.com.ost, which I found with the find command.

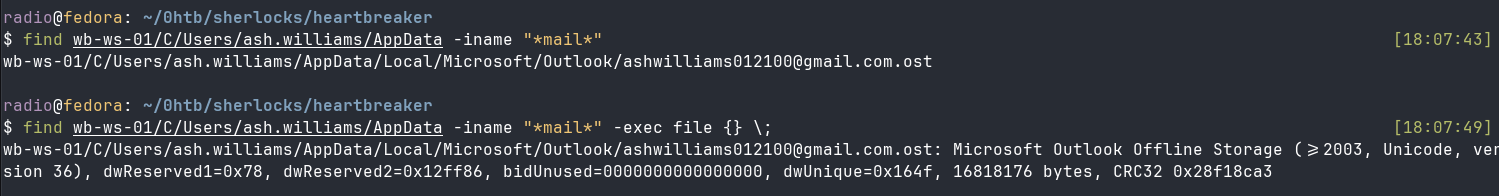

find wb-ws-01/C/Users/ash.williams/AppData -iname "*mail*"

I can’t directly view the .ost file, so I used readpst from libpst to convert the mail to mbox format.

mkdir mail_output_ash

readpst -r -o mail_output_ash wb-ws-01/C/Users/ash.williams/AppData/Local/Microsoft/Outlook/ashwilliams012100@gmail.com.ost

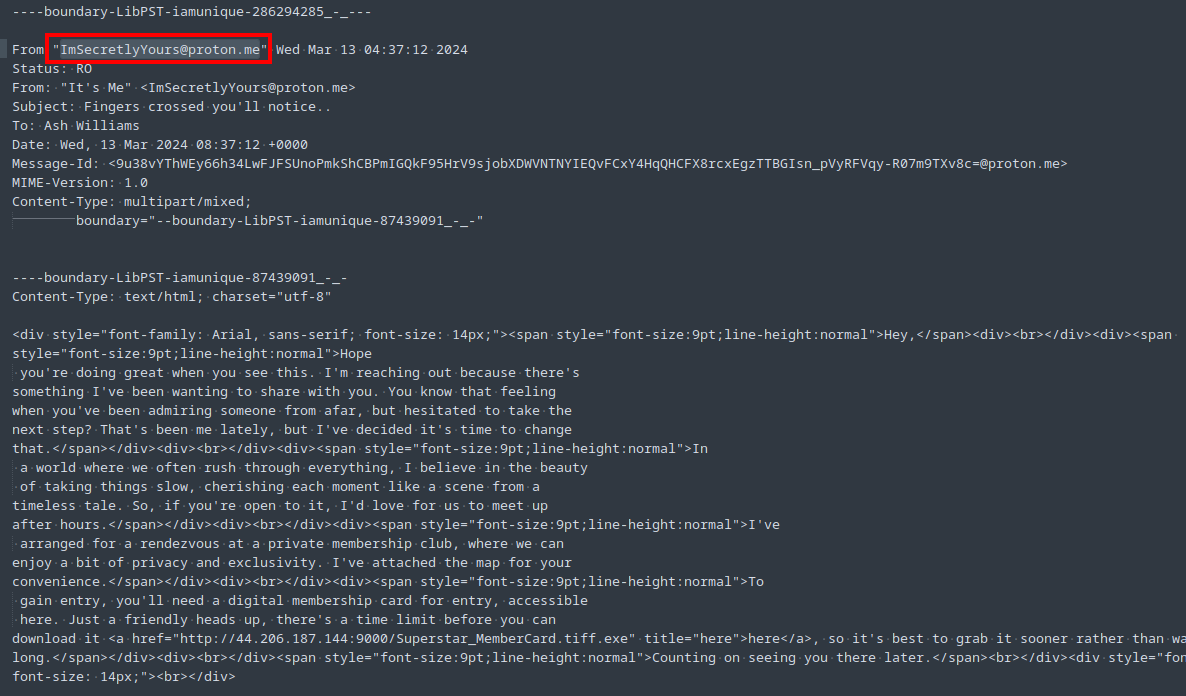

Now I can just open the various mbox files in a text editor. Opening the inbox file (mail_output_ash/ashwilliams012100@gmail.com.ost/Inbox/mbox) in a text editor, my attention was drawn to a message that seems quite suspicious. It claims to be from a secret admirer and urges the recipient to download an executable file. It is from ImSecretlyYours@proton.me (Figure 3).

Task 2: It appears there’s a link within the email. Can you provide the complete URL where the malicious binary file was hosted?

See Figure 3. The link is included near the bottom in an href.

Task 3: The threat actor managed to identify the victim’s AWS credentials. From which file type did the threat actor extract these credentials?

This one took me much longer than I’d care to admit. I was looking in all the wrong places, but I’ll quickly go over some of what I did that failed for educational purposes.

I looked around for some common places that AWS credentials might be stored, but found nothing. Here are some places where there wasn’t evidence of AWS credentials:

Files:

• %UserProfile%\.aws\credentials
• %UserProfile%\.aws\config
• %UserProfile%\AppData\Roaming\Microsoft\Windows\PowerShell\PSReadline\ConsoleHost_history.txt
• .ps1 files
• .env files

Logs:

• No evidence of malicious access to aws.exe

Registry:

• No evidence of AWS credentials in HKCU\Environment or HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\Environment

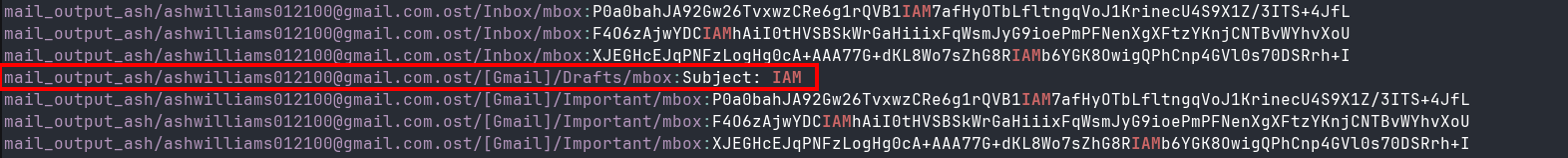

Having failed so far, I went back to reread the task question and noticed that Task 4 seems to be related to this one and mentions the “actual IAM credentials”, referring to the AWS credentials we are searching for in Task 3. Based on this, I grepped for “IAM” and found a suspicious result (Figure 4).

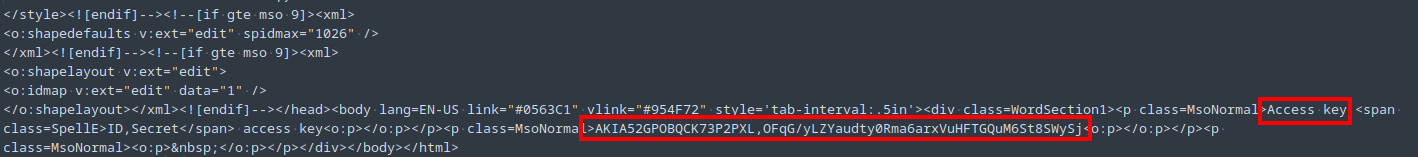

Looking at that file in a text editor, I could see the AWS credentials (Figure 5).

Though the file where I found the credentials was mail_output_ash/ashwilliams012100@gmail.com.ost/\[Gmail\]/Drafts/mbox, and has no extension, I previously extracted it from the .ost file, making that the answer.

Task 4: Provide the actual IAM credentials of the victim found within the artifacts.

See Task 3, Figure 5. Make sure to format the credentials correctly.

Task 5: When (UTC) was the malicious binary activated on the victim’s workstation?

First, I used chainsaw to do a rough query for logs associated with the malicious binary (whose name was earlier observed in the malicious link in the email) to start getting a grasp on the execution timeline. The malicious binary is called Superstar_MemberCard.tiff.exe.

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T00:00:00" --skip-errors 'Superstar_MemberCard.tiff.exe' wb-ws-01/C/Windows/System32/winevt

There were 128 results of logs related to the malicious binary. I used grep, cut, and uniq to parse the results and found that they are mostly clustered around 2024-03-13 10:44 to 10:48 with another few at 14:00 on the same day.

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T00:00:00" --skip-errors 'Superstar_MemberCard.tiff.exe' wb-ws-01/C/Windows/System32/winevt | grep -i systemtime | cut -d ' ' -f 8 | cut -d '.' -f 1 | cut -d 'T' -f 2 | cut -d ':' -f 1,2 | uniq

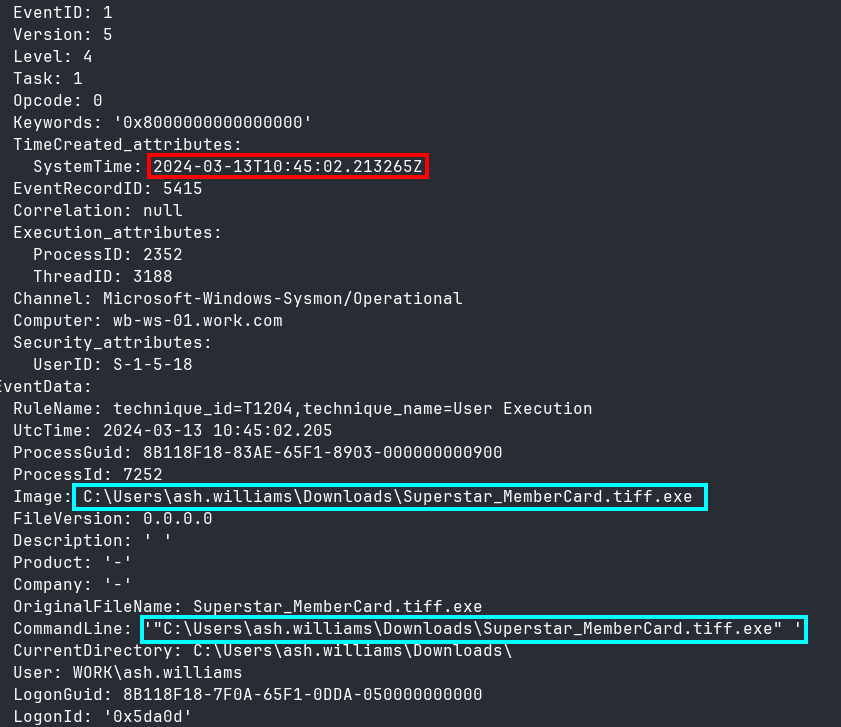

Next, I used Chainsaw to bring up Sysmon logs in a tight window around the time the attack started, then found the first log with Image: C:\Users\ash.williams\Downloads\Superstar_MemberCard.tiff.exe and Sysmon EventID 1 (Process Creation) as shown in Figure 6.

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T10:45:00" --to "2024-03-13T10:46:00" --skip-errors -t "Event.System.EventID: =1" wb-ws-01/C/Windows/System32/winevt/logs/Microsoft-Windows-Sysmon%4Operational.evtx

Task 6: Following the download and execution of the binary file, the victim attempted to search for specific keywords on the internet. What were those keywords?

To find these keywords, I need to look through the user’s internet history. They have a few browsers on their system, but since Firefox is the only one that would need to be intentionally installed on a Windows system, I think that’s a good place to start. I used sqlitebrowser to open Firefox’s history file.

sqlitebrowser ./wb-ws-01/C/Users/ash.williams/AppData/Roaming/Mozilla/Firefox/Profiles/hy42b1gc.default-release/places.sqlite

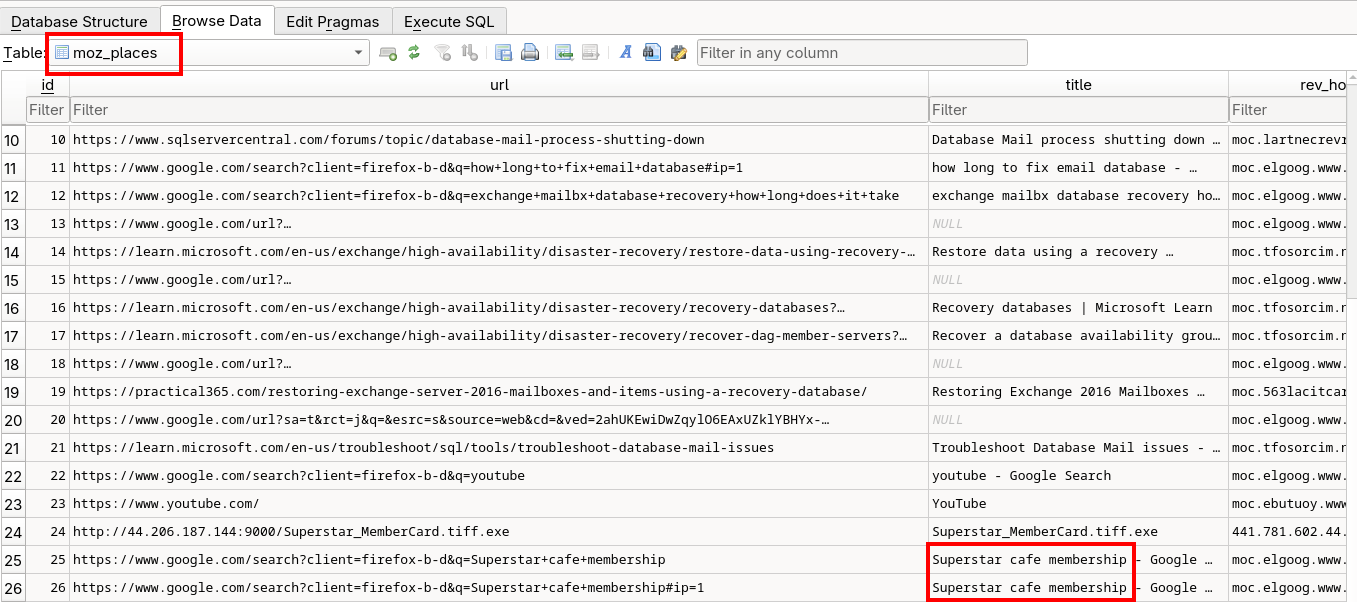

Then I opened the ‘moz_places’ table and found the keywords (Figure 7)

Task 7: At what time (UTC) did the binary successfully send an identical malicious email from the victim’s machine to all the contacts?

I first tried looking in the Outbox file (mail_output_ash/ashwilliams012100@gmail.com.ost/Outbox/mbox), but it was empty. It turns out that sent mail is not stored there. This made sense after I read about it, but to my young millennial mind, Outbox initially sounded like the opposite of Inbox.

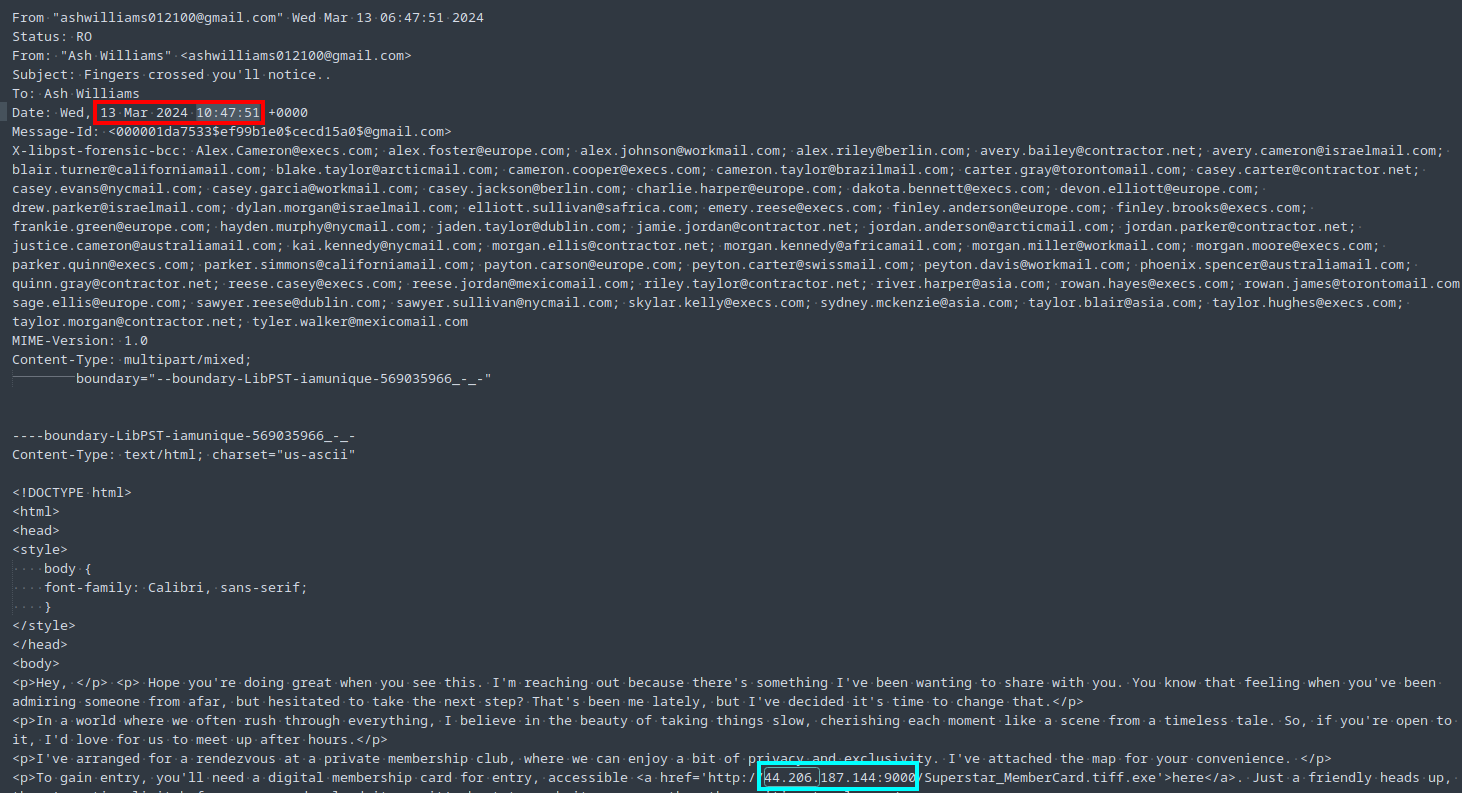

Anyway, the sent mail is actually stored in a different file (mail_output_ash/ashwilliams012100@gmail.com.ost/\[Gmail\]/Sent\ Mail). I opened that file in a text editor and found the malicious email by searching for the malicious IP found in the link from Task 2 (Figure 8).

Task 8: How many recipients were targeted by the distribution of the said email excluding the victim’s email account?

Ash.Williams’ contacts are saved in the mail_output_ash directory that I made in Task 1. Each contact starts with the word “BEGIN”, so I used that with grep to isolate the number of contacts and count them with wc.

cat mail_output_ash/ashwilliams012100@gmail.com.ost/Contacts\ \(This\ computer\ only\)/contacts | grep -i begin | wc -l

Alternatively, you could count the email addresses listed in the malicious email from Task 7.

Task 9: Which legitimate program was utilized to obtain details regarding the domain controller?

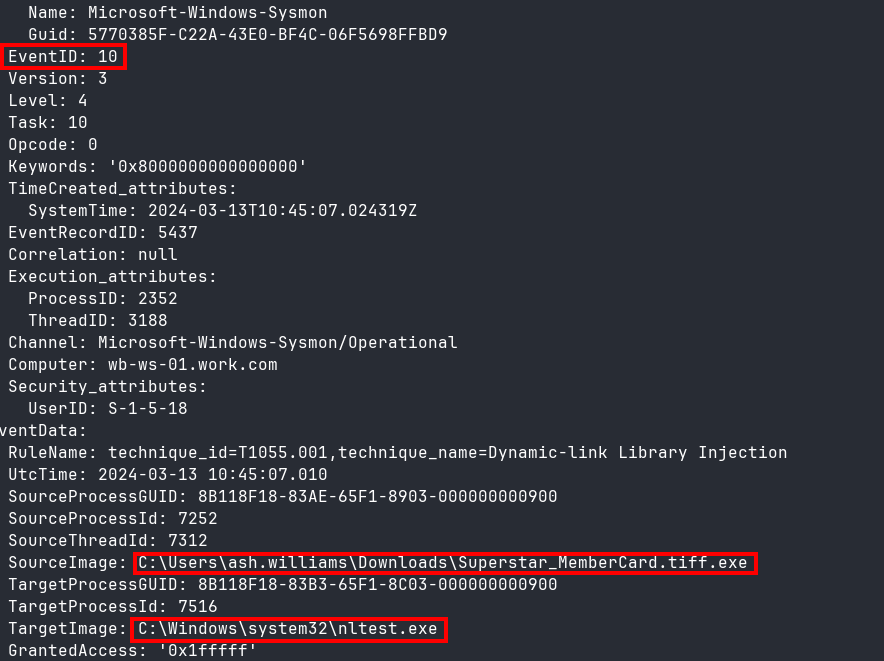

Here I was interested in finding out what processes were accessed by the malicious binary. To do this, I used chainsaw to query the logs for Sysmon EventID 10, which indicates process access. There were only 16 results, so I could easily parse through them manually, looking for logs where the SourceImage is the malicious binary and the TargetImage is a legitimate program that can get details about the DC. I found a log that fit all the criteria (Figure 9).

nltest.exe, or Net Logon Test, is a tool that can, among other things, get a list of Domain Controllers and information about trust relationships within the domain.

Task 10: Specify the domain (including sub-domain if applicable) that was used to download the tool for exfiltration.

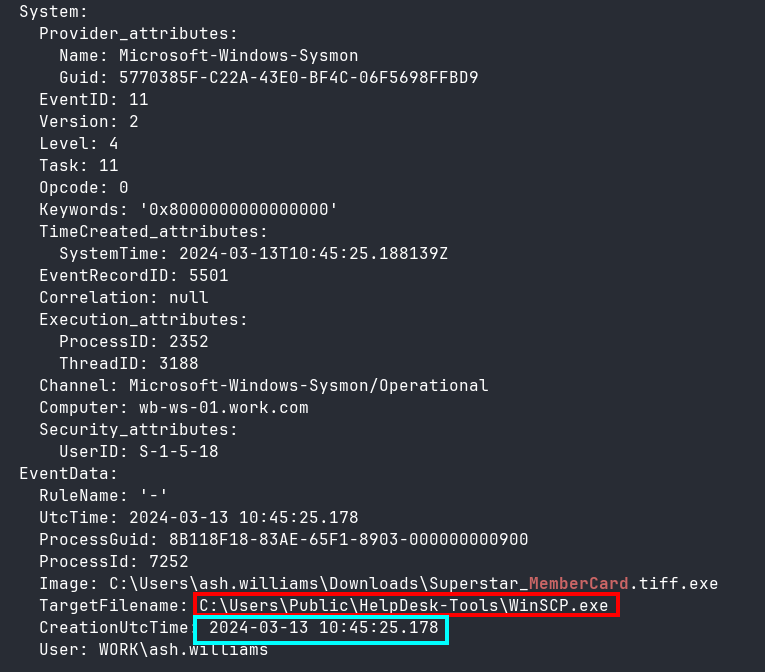

I looked through some Sysmon EventID 11 (FileCreate) logs and found that the malicious binary writes a file WinSCP.exe, indicating that they downloaded WinSCP, which could be used for exfiltration (Figure 10).

Using the file’s creation time, I created a chainsaw query that searched for Sysmon DNS request logs (EventID 22) in a tight 10-second window around the WinSCP.exe’s creation time.

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T10:45:20" --to "2024-03-13T10:45:30" --skip-errors -t "Event.System.EventID: =22" wb-ws-01/C/Windows/System32/winevt/logs/

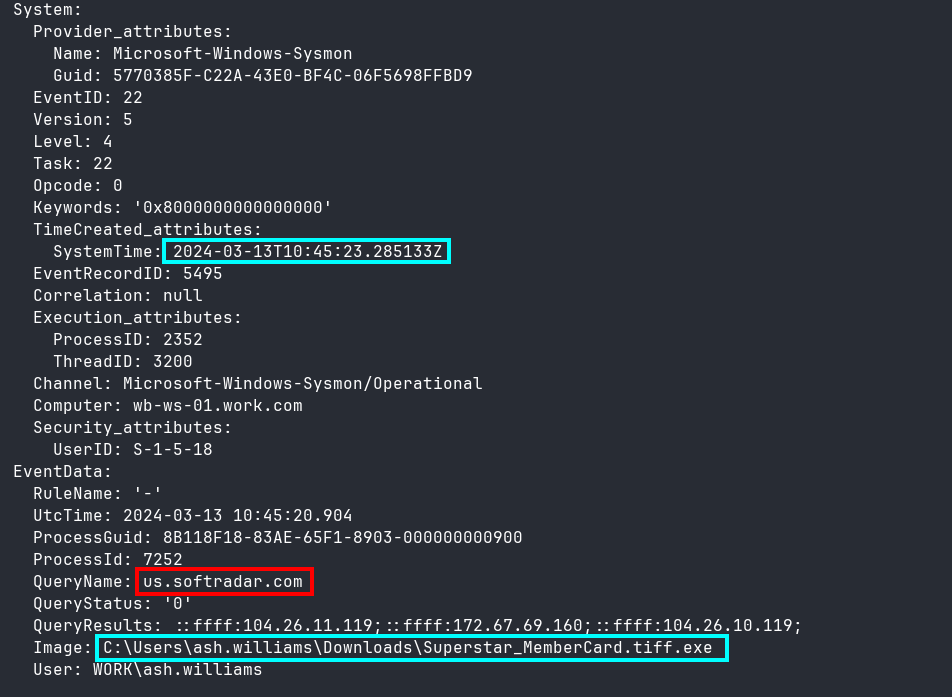

Sure enough, the malicious binary made a DNS request to us.softradar.com just 2 seconds before it created the WinSCP.exe (Figure 11).

Task 11: The threat actor attempted to conceal the tool to elude suspicion. Can you specify the name of the folder used to store and hide the file transfer program?

I already found WinSCP.exe in Task 10. Its parent folder is what the question is asking for here.

Task 12: Under which MITRE ATT&CK technique does the action described in question #11 fall?

The full path of WinSCP.exe is C:\Users\Public\HelpDesk-Tools\WinSCP.exe, meaning the exfiltration tool is being concealed in C:\Users\Public\HelpDesk-Tools to elude suspicion. In this case, the attacker isn’t actually doing anything technical to hide their tools except naming them such that they could feasibly blend into a corporate environment. That is, the tool is not called exfil.exe and stored in C:\Users\Public\Hacking-Tools. This doesn’t change or substantively hide the tools.

Certainly this would fall under Defense Evasion, and looking through the techniques at MITRE’s website, it looks like it matches Masquerading well.

Task 13: Can you determine the minimum number of files that were compressed before they were extracted?

I didn’t really know where to start this one. Is that info stored in logs? Could I check the access times of the files via Eric Zimmerman’s Timeline Explorer?

The question implies the existence of a compressed archive, so I thought I’d start by trying to find the archive that the files were compressed into to see if I could pivot from any information there. I used this chainsaw query:

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T10:44:00" --to "2024-03-13T14:00:00" --skip-errors -t "Event.System.EventID: =11" wb-ws-01/C/Windows/System32/winevt/logs/ | grep -iC 25 zip

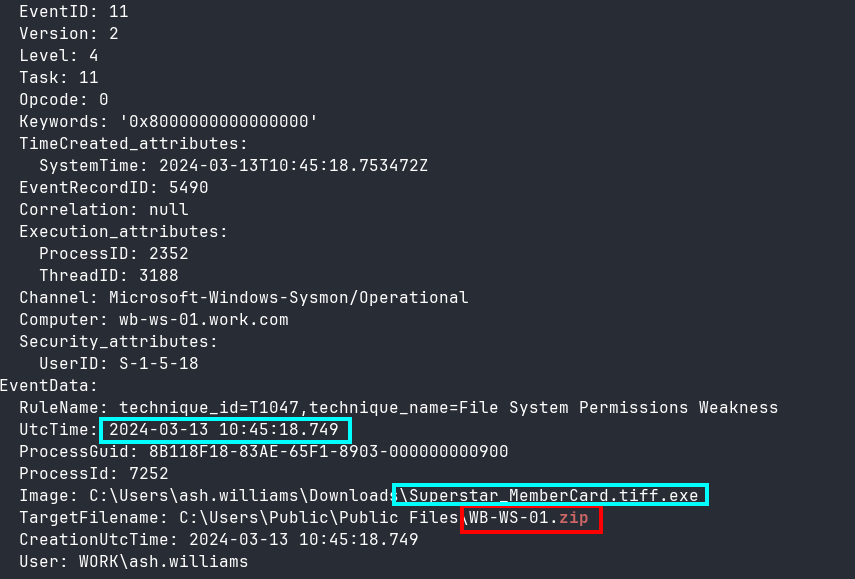

This only shows two zip files being created. One is the download of WinSCP.zip, and the other is probably what I am interested in: WB-WS-01.zip created by the malicious binary just before the network connection from the exfil tool (Figure 12).

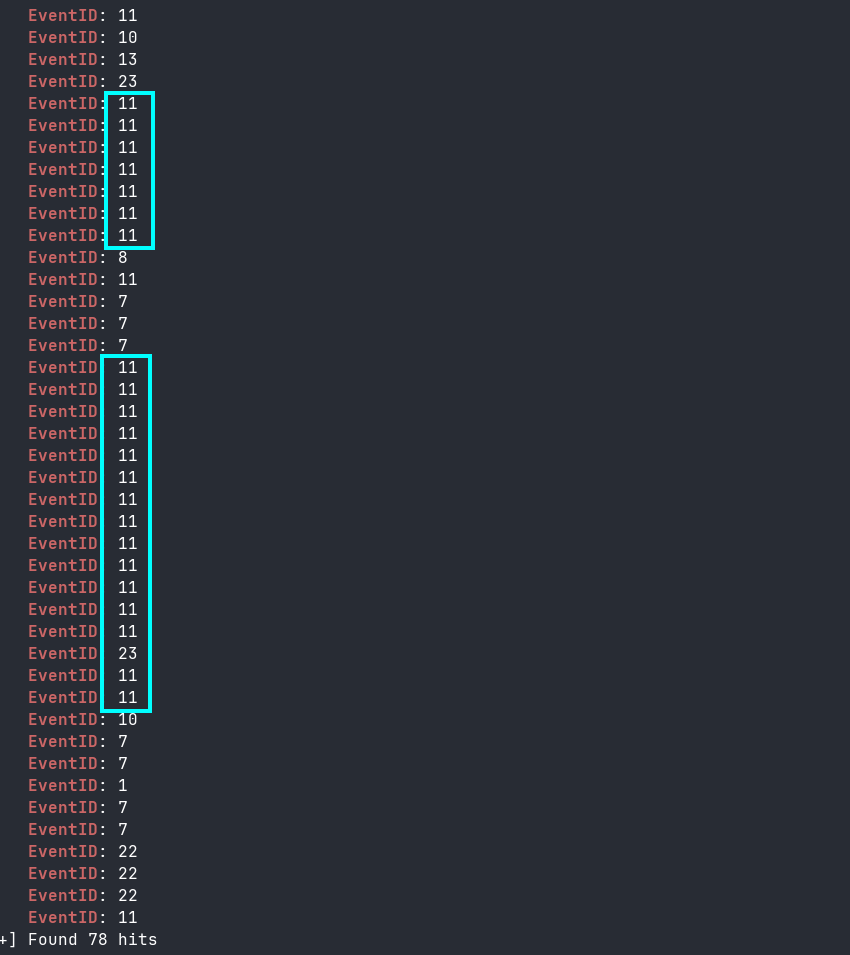

Naturally, the files compressed into this archive must have been accessed or gathered before the archive was created, so I queried again for Sysmon logs in the 19 seconds leading up to the creation of the archive. I also grepped for EventID to isolate the EventIDs and make it easier to glance through for a high-level overview of the events in those 19 seconds. What caught my eye here were all the EventID 11s. These are all files being created, possibly copied into the same directory before being compressed? (Figure 13)

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T10:45:00" --to "2024-03-13T10:45:19" --skip-errors "" wb-ws-01/C/Windows/System32/winevt/logs/Microsoft-Windows-Sysmon%4Operational.evtx | grep EventID

Next I took a look at all the target filenames of the files being created with:

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T10:45:00" --to "2024-03-13T10:45:19" --skip-errors -t "Event.System.EventID: =11" wb-ws-01/C/Windows/System32/winevt/logs/Microsoft-Windows-Sysmon%4Operational.evtx | grep -i targetfilename

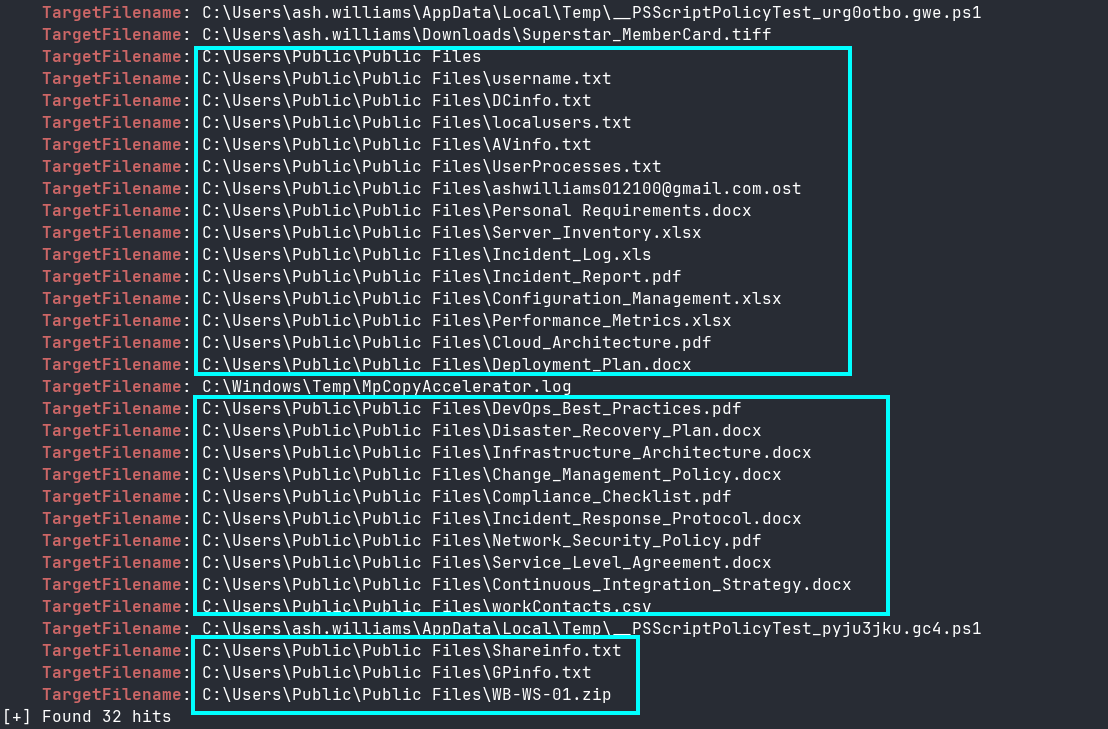

Many of these look like files that an attacker would want to exfiltrate for later use (Figure 14).

Assuming these are the files the question is referring to, let’s count them up with more grep and wc:

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T10:45:00" --to "2024-03-13T10:45:19" --skip-errors -t "Event.System.EventID: =11" wb-ws-01/C/Windows/System32/winevt/logs/Microsoft-Windows-Sysmon%4Operational.evtx | grep -i targetfilename | grep "Public Files" | grep "\." | grep -v zip | wc -l

And the command output reported 26 results (excluding the directory itself and the archive), which was indeed the answer.

Task 14: To exfiltrate data from the victim’s workstation, the binary executed a command. Can you provide the complete command used for this action?

Since the question is asking about exfiltration, I suspect that the command executed by the malicious binary will include an invocation of the exfiltration tool WinSCP.exe, so I will query for that with chainsaw and filter for instances that include a CommandLine field. Only 4 lines are returned (Figure 15).

chainsaw search --timestamp 'Event.System.TimeCreated_attributes.SystemTime' --from "2024-03-13T10:45:00" --to "2024-03-13T13:00:00" --skip-errors 'WinSCP' wb-ws-01/C/Windows/System32/winevt/logs/ | grep -i commandline

One of these CommandLines has the malicious binary as its ParentCommandLine, meaning that it was executed by the malicious binary.

Conclusion

I enjoyed many aspects of this Sherlock. I liked the realism of the premise, the wide range of tasks that were assigned, and the simplicity of the attack. This is classic attack if there ever was one. It was nice to be able to complete so much of the investigation without resorting to many security tools. Chainsaw was really the only specialized tool that I had to use, and the rest was good-old linux terminal tools. Very fun! There is another Sherlock that seems to be a sequel of sorts to this one, Heartbreaker-Continuum, in which we can take a closer look at the malware from this challenge. Look out for that write-up coming up soon!

Thanks for reading! If you have any questions or comments, feel free to reach out or follow me on X
